When you test a heating element, you’re really just checking for two things: electrical continuity and resistance. It all comes down to what your multimeter tells you.
A healthy element lets electricity flow through it with a very specific, low amount of resistance. Think of it like a carefully designed roadblock that generates heat. If the element is busted, it will either show up as an open circuit (infinite resistance) or a short circuit (almost no resistance). Getting your head around these basic outcomes is the secret to a quick and accurate diagnosis.
What a Multimeter Tells You About Your Heating Element
Before you even reach for your tools, let’s quickly go over what you’re actually looking for. A heating element is just a controlled path for electricity. As current moves through its internal coil, it hits resistance, and that friction is what creates heat. Simple enough, right? Your multimeter is the tool that lets you see exactly what’s happening on that path.
When you’re testing an element, you’re going to get one of three results:
- A specific resistance reading: This is what you want to see. It means the element’s internal coil is intact and providing just the right amount of resistance to do its job.
- Infinite resistance (OL): If your meter shows “OL” (which stands for “Over Limit” or “Open Loop”), it means there’s a break somewhere in the internal coil. The electrical highway is out, so no current can get through, and you get no heat.
- Zero resistance: A reading close to zero ohms points to a “short circuit.” The electricity has found a shortcut, completely bypassing the coil that’s supposed to create resistance. This not only stops it from heating but can also trip your breakers.
A short circuit isn’t just a broken part; it’s a serious electrical fault that can be a real hazard. The first and most important step is always to kill the power before you touch anything. For a full rundown, check out our guide on essential electrical safety tips.
The whole process boils down to measuring the element’s resistance, which is measured in ohms (Ω). This gives you a hard number to work with. A working element should have a resistance value that matches its design specs. For instance, a very common 1500-watt, 120-volt heating element should give you a reading right around 9.6 ohms.
If your reading is way off—either sky-high (infinite) or practically zero—you know you’ve found the problem. You can dig deeper into how these specs are calculated by looking at resources from industry pros like Watlow.
Interpreting Multimeter Readings at a Glance
To make it even simpler, here’s a quick cheat sheet for what your multimeter is telling you. This table breaks down the common readings and what they mean for your heating element’s health.
| Multimeter Reading | What It Means | Condition of Element |
|---|---|---|
| Specific Resistance (e.g., 9.6 Ω) | The electrical pathway is intact and correct. | Good / Functional |
| “OL” or Infinite Resistance | There is a complete break in the internal coil. | Faulty (Open Circuit) |
| Near Zero Ohms (e.g., 0.2 Ω) | The electricity has found a shortcut. | Faulty (Short Circuit) |
Seeing that “OL” or near-zero reading is your green light to replace the element. On the other hand, if you get the expected resistance value, the element is likely fine, and you’ll need to look for the problem elsewhere in the system.
Setting Up for a Safe and Accurate Test
Before you even think about touching a heating element, the first thing on your mind needs to be safety. Period. Working with any electrical appliance, whether it’s a water heater or a clothes dryer, requires a deliberate, step-by-step approach to keep you safe. Nail the setup, and you’ll get a test that’s both accurate and injury-free.
Your go-to tool here is a multimeter. You’ll need to get it set up correctly before you start. Turn the main dial to the resistance setting, which is usually marked with the Greek letter omega (Ω). This setting measures ohms, and it’s exactly what you need to check for both continuity (a complete circuit) and a short to ground.

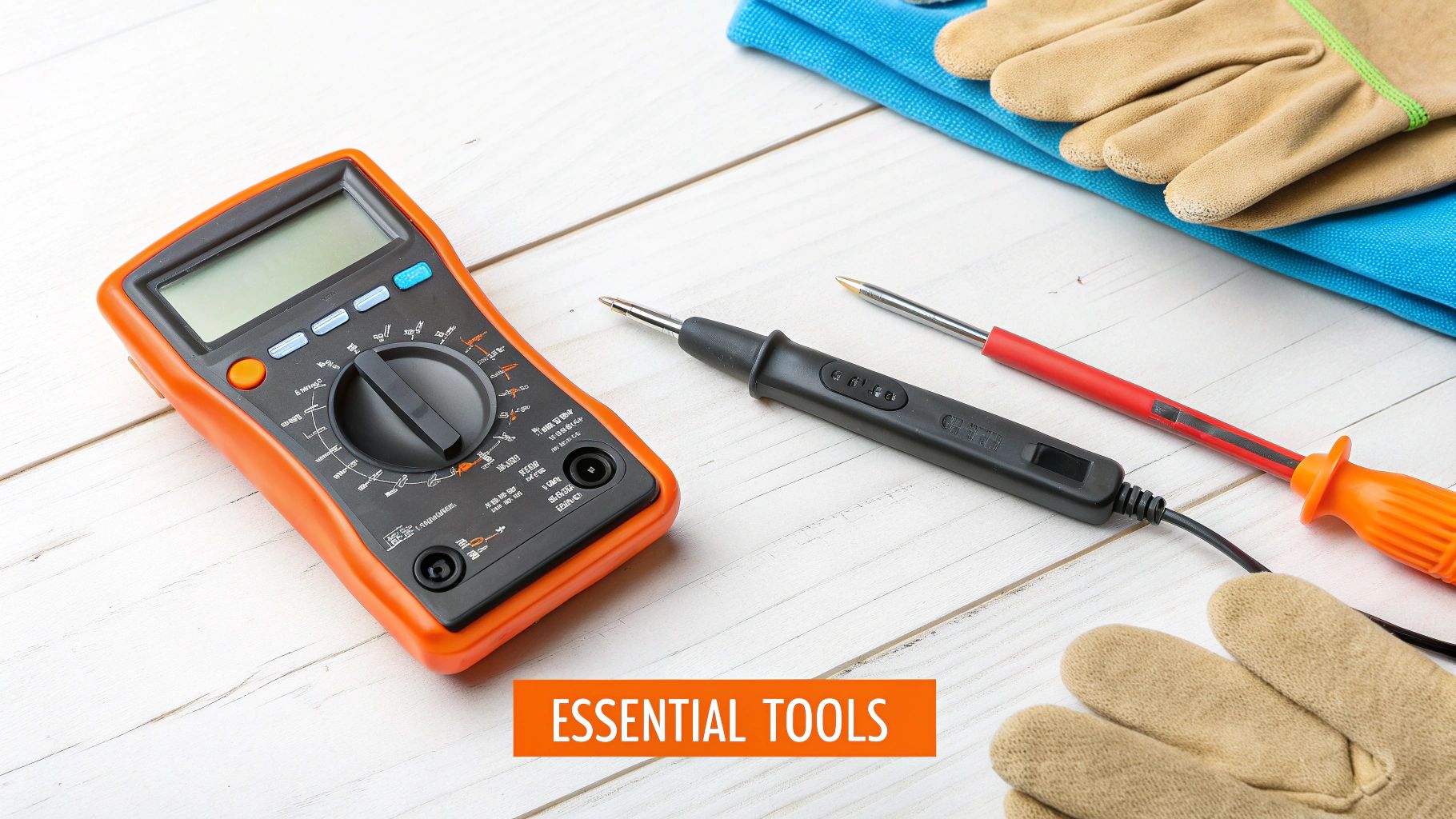

Assembling Your Toolkit
You don’t need a massive toolbox for this, but having the right gear on hand makes the job a whole lot smoother and safer.
Here’s a quick list of what I recommend grabbing:
- Insulated Gloves: This is a non-negotiable. Protect your hands from the sharp metal edges you’ll almost certainly find inside the appliance.
- Screwdrivers or Nut Drivers: You’ll need the right tool to get the access panel off. It’s typically a Phillips head or a specific size nut driver.
- Non-Contact Voltage Tester: This is my personal must-have for a final safety check. It’s an inexpensive tool that gives you invaluable peace of mind before you put your hands anywhere near the wiring.
- Flashlight or Headlamp: The inside of an appliance is never well-lit. Good lighting is absolutely essential to see what you’re doing.
Getting these items together first means you won’t be scrambling for a tool mid-job, which helps you stay focused on doing things safely.
Safety First Always: The golden rule of any electrical work is to make sure the appliance is completely disconnected from its power source. There are zero exceptions. One mistake here can lead to serious injury or fry your equipment.
The Power-Down Protocol
Alright, this is the most important part: kill the power. I’m not just suggesting it; it’s a mandatory step. Depending on the appliance, you’ve got a couple of ways to do this.
- Unplug It: For anything with a visible cord, like a clothes dryer or a portable space heater, simply pull the plug from the wall outlet. Easy enough.
- Flip the Breaker: For hardwired appliances like your furnace or water heater, you’ll need to head to your home’s main electrical panel. Find the breaker that controls the unit and flip it firmly to the “OFF” position.
Once you think the power is off, it’s time for one final verification. This is where that non-contact voltage tester proves its worth. Hold the tip of the tester near the heating element’s terminals. If it stays quiet—no lights, no beeps—you’ve confirmed there’s no live voltage present.
This simple double-check removes all doubt and is a core principle of professional electrical wiring inspections. It should be a standard habit for any DIYer working with electricity.
Putting Your Multimeter to Work: The Continuity Test
Alright, with your multimeter ready and the power safely off, it’s time to actually run the continuity test. This is the moment of truth that tells you whether the element’s internal wiring is still in one piece. The process itself is pretty simple, but doing it right is what gets you a reliable answer.
Let’s walk through a common job: testing an element on one of the many types of residential https://heatwavehvac.com/water-heaters/ we see in the field. Don’t worry, the core idea is the same for ovens, dryers, and furnaces—it’s just a matter of finding and getting to the part. The goal here is to expose the element’s terminals, which are the two connection points where electricity flows in and out.
Getting to the Element Terminals
First things first, you have to access the element. On a water heater, this usually involves taking off a small metal panel held on by a screw or two. Pop that off, and you’ll see some insulation and probably a plastic safety cover protecting the terminals.
Once you have that cover out of the way, you’ll see the two screws where the power wires connect. Go ahead and carefully disconnect those wires. This isolates the element completely so you can get a clean, accurate reading without any interference. Now your multimeter probes have a clear shot at the terminals.
Taking the Resistance Reading
This is where we find out what’s really going on. Firmly touch one of your multimeter’s probes to one of the element’s screw terminals. Now, do the same with the other probe on the second screw terminal.
It doesn’t matter which probe goes where—you’re just completing a circuit through the element itself so the meter can measure its internal resistance. Just make sure you’ve got solid metal-on-metal contact.

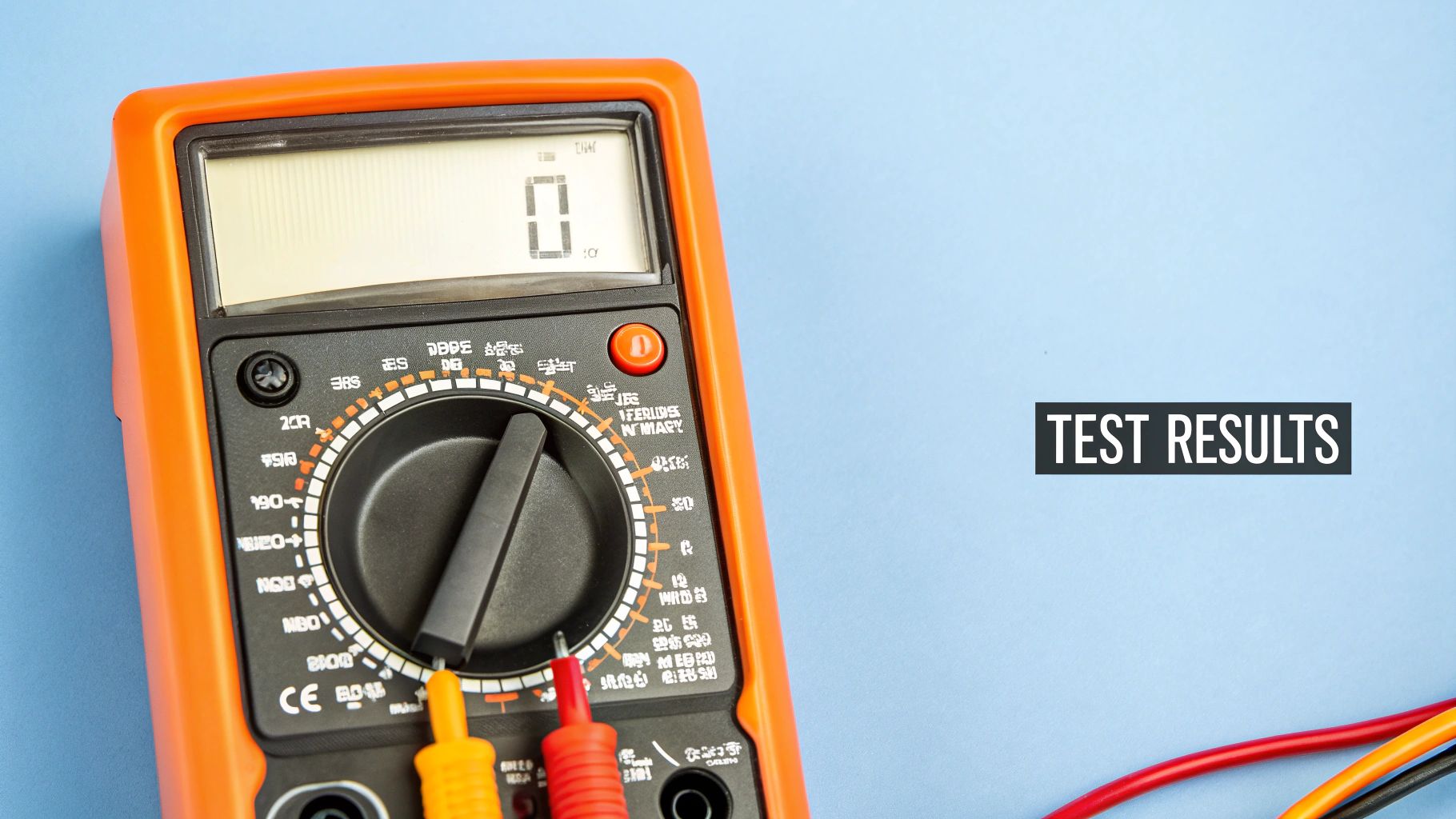

The multimeter in this image is showing us exactly what we want to see: a clear, steady reading. When the meter beeps and shows a low resistance value, it confirms the electrical path through the component is complete and unbroken.
Now, take a look at your multimeter’s screen. A healthy heating element should show a specific resistance reading. For most home appliances, you’re looking for a number somewhere between 10 and 50 ohms. A stable number in this ballpark is a very good sign.
It confirms two critical things:
- The internal coil isn’t broken or burned out.
- The coil has the right amount of resistance to do its job and generate heat.
Pro Tip: If you see the numbers jumping all over the place, it’s almost always a bad connection. Try pressing your probes more firmly against the terminals. Sometimes a little corrosion can build up, so giving them a quick scrub with a small wire brush can make all the difference in getting a steady, accurate reading.
Good vs. Bad Results: What the Numbers Mean
Understanding the reading is easy once you know what to look for. Your test will almost always end in one of two ways.
- A Good Reading: You see a number like 16 ohms. This tells you the element has continuity—the electrical pathway is intact. It’s very likely working just fine.
- A Bad Reading: The meter displays “OL,” which stands for “Over Limit” or “Open Loop.” This means there’s a break somewhere inside the element’s coil. Electricity has nowhere to go, so it can’t produce heat. The element is bad and needs to be replaced.
This simple pass/fail test is a powerhouse for diagnosing all sorts of appliance headaches. It’s not just for heating elements, either. You can use a nearly identical technique to figure out how to tell if an AC fuse is blown, for example.
If your element passes the continuity test but your gut still says something is wrong, don’t pack up your tools just yet. There’s one more crucial check to perform: testing for a short to ground. It’s a hidden problem that this first test won’t catch.
Testing for a Dangerous Short to Ground
Alright, just because an element passed the continuity test doesn’t mean you’re in the clear. There’s a much sneakier and more dangerous fault we need to check for: a short to ground. This test is an absolute must-do for safety.
So, what is a short to ground? It happens when the element’s inner heating coil somehow makes contact with the outer metal sheath. When that occurs, electricity has a path it was never meant to take—right to the appliance’s metal frame. This is often the culprit behind a constantly tripping circuit breaker, or far worse, it can create a serious shock hazard.
This next test confirms that the electrical current is staying exactly where it belongs: safely inside the element’s coil.
Performing the Short to Ground Test
The setup here is almost identical to the continuity check, but where you place the probes is critically different. Keep your multimeter set to the ohms (Ω) setting.
Here’s what you’ll do:
- Place one multimeter probe firmly on one of the element’s screw terminals. It doesn’t matter which one.
- Now, touch the other probe to a clean, unpainted metal spot on the element’s outer casing or flange.
- Take a look at the reading on your multimeter.
What you’re doing is checking for any electrical connection between the live terminal and the grounded metal exterior. If your meter finds a path, it means electricity is leaking where it absolutely shouldn’t be.
A short to ground is a critical failure. This isn’t like a simple open circuit that just stops the heat from working. This fault introduces a direct safety risk. There’s no gray area here; if an element fails this test, it has to be replaced immediately.
Understanding these kinds of electrical faults can also help you make sense of other frustrating issues around the house. In fact, it’s one of the main reasons you might be wondering Why Your Circuit Breaker Keeps Tripping and How to Fix It.
What Your Results Mean
Interpreting the results for a short-to-ground test is incredibly straightforward. You’re looking for one specific outcome to know the element is safe.
- A Healthy Element: Your multimeter should read “OL” (which stands for Over Limit) or display an infinity symbol. This is exactly what you want to see. It proves there is no electrical connection between the terminal and the casing, meaning no electricity is escaping.
- A Faulty Element: If your multimeter shows any numerical resistance value at all, or if it beeps (on models with an audible alert), the element is shorted to ground. That reading confirms a dangerous electrical pathway exists.
A faulty reading means the element is compromised and flat-out unsafe. The only fix is a replacement. A properly functioning grounding system is essential for your home’s safety, protecting you from exactly these kinds of electrical faults.
Under no circumstances should you ever reinstall an element that has failed this critical safety check.
Interpreting Advanced Signs of Element Failure
Sometimes, you’ll run into a real head-scratcher. The multimeter says the heating element is fine—it has continuity, and it’s not shorted to ground—but the appliance still isn’t working right. This is where experience really kicks in, because a simple pass/fail from your meter doesn’t always tell the whole story.
Think of it like this: a tire can hold air but still have a dangerous bulge on the sidewall, ready to blow at any moment. An element can be electrically “okay” while being on the verge of total failure. You have to look for the physical warning signs that signal internal damage and an impending breakdown.

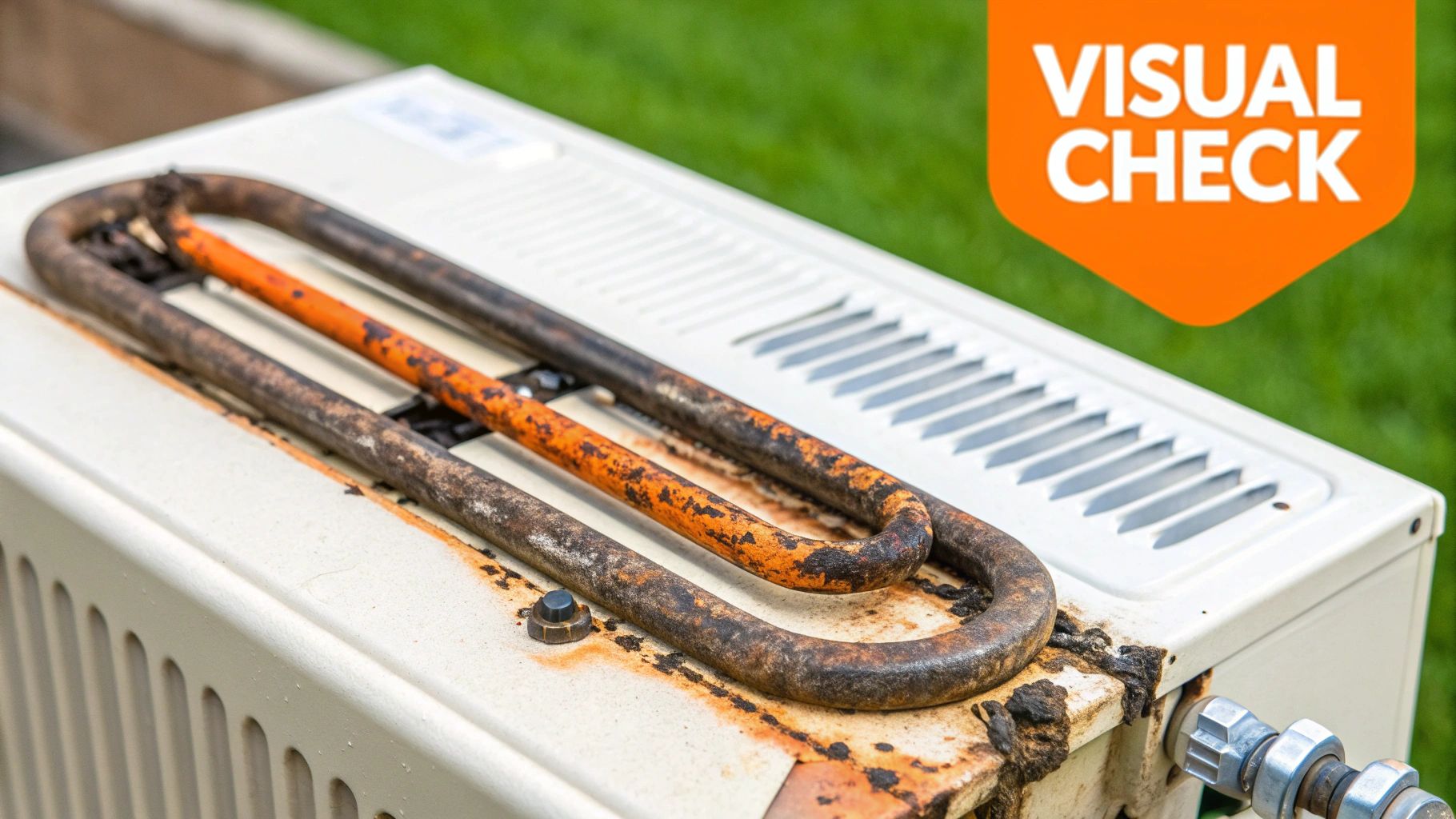

Beyond the Multimeter Reading
A visual inspection is just as critical as an electrical test. When you have the element out and in your hands, take a good, close look at its physical condition. These subtle cues often reveal a problem long before your multimeter will.
Here’s what you need to be looking for:
- Blisters or Bulges: Any swelling on the element’s metal sheath is a major red flag. This means the internal coil has overheated in one spot, and failure is imminent.
- Cracks or Pitting: Tiny fissures or pits in the metal are clear signs of corrosion and material fatigue. It’s only a matter of time before they lead to a short.
- Warping or Deformity: If the element is bent or distorted from its original shape, it’s been subjected to extreme stress or temperatures it wasn’t designed for.
- Discoloration: While some minor discoloration is normal, any dark, burnt-looking spots point to areas of intense, damaging heat.
Finding any of these issues means that even if the electrical path is intact today, the element’s structural integrity is shot. Deciding to replace it based on these signs is smart, especially for those frustrating, intermittent problems. It’s a preventative move that can save you a bigger headache down the road. When you’re already weighing water heater replacement costs and signs of failure, replacing a compromised element proactively just makes financial sense.
An element with visible blisters has already failed internally, even if it shows continuity. The intense heat that creates the bulge damages the insulation and wiring, making a complete failure just a matter of time.
To clarify how these signs relate to test results, let’s break it down. Visual clues give you a heads-up about what’s going to happen, while electrical tests confirm what has happened.
Comparing Visual vs. Electrical Test Indicators
| Indicator Type | Common Signs | What It Suggests | Definitive Test |
|---|---|---|---|
| Visual Indicators | Blisters, bulges, cracks, pitting, or warping. | The element is structurally compromised and on the brink of failure. Internal overheating has occurred. | Electrical Tests (Continuity, Short-to-Ground) |
| Electrical Indicators | No continuity (infinite resistance) or a reading to ground. | The internal coil has completely broken, or the wiring is touching the outer metal sheath. | Multimeter Testing |
Ultimately, a good diagnosis uses both your eyes and your tools. Don’t just trust the meter—trust your experience, too.
The Science of Material Degradation
Over time, even a perfectly functioning heating element wears out. The constant cycle of heating up and cooling down slowly degrades the nickel-chromium (NiCr) alloy that makes up the internal coil. This process is gradual and won’t be caught by a standard multimeter test until the element finally breaks completely.
This isn’t just guesswork; there’s real science behind it. Advanced predictive testing methods, for instance, use complex Fourier heat transfer models to estimate an element’s remaining life. By measuring the sheath temperature of a typical element—often around 0.43 inches in diameter—engineers can calculate the internal coil temperature and predict when the material will break down.
This process is even quantified using a degradation coefficient, like θ = 6.4 × 10⁻⁷, which is derived from real-world testing to forecast failure probability. You can read the full details behind these patented predictive testing methods if you want to dive deep. The takeaway is simple: an element doesn’t just work one day and fail the next. It’s a slow decline that a keen eye can spot long before it leaves you in the cold.
Common Questions I Get About Testing Heating Elements
Even with a step-by-step guide, you’re bound to have a few questions pop up when you’re elbows-deep in an appliance. I’ve been there. Let’s walk through some of the most common questions I hear from folks trying to test a heating element for the first time.
What Should a Good Heating Element Read in Ohms?
This is the big one, but there’s no magic number. The correct reading really depends on the appliance’s voltage and wattage. Think of it as a fingerprint—each element is a little different.
That said, for most household appliances like water heaters or dryers, you’re typically looking for a reading somewhere between 10 and 50 ohms.
The most critical thing is getting a stable, concrete number in that ballpark. If your multimeter screen flashes “OL” (Open Line), it means the coil inside the element is broken. Game over for that element. On the flip side, a reading close to zero ohms signals a dead short.
If you’re the type who needs a precise target, you can break out the calculator with a simple formula: Resistance = (Voltage x Voltage) / Wattage.
Can a Heating Element Be Bad if It Looks Fine?
Absolutely. This trips up so many people. An element can look pristine—no scorch marks, no cracks, no blisters—and still be completely shot.
The most common failure is an internal break in the coil, and that’s something you’ll never see from the outside. That’s exactly why your multimeter is your best friend here. A visual check is good for spotting the obvious stuff, but it can’t tell you what’s happening electrically.
Remember, the multimeter test reveals the electrical truth. A visual check only tells you about the physical condition. Both are important, but only the electrical test can confirm a hidden internal failure.
Is It Safe to Test an Element Inside the Appliance?
Yes, it’s not only safe but it’s how we do it in the field most of the time. But this comes with one non-negotiable rule: the appliance MUST be completely disconnected from its power source.
Before your tools go anywhere near it, unplug the appliance or kill the dedicated circuit breaker at your main panel. Then, as a final “trust but verify” step, touch the element’s terminals with a non-contact voltage tester. This takes two seconds and gives you 100% certainty that the power is off before you make contact.
Does a Glowing Red Element Mean It Works Properly?
Not always. A red glow just tells you electricity is flowing and creating heat. It doesn’t tell you the whole story about its safety or condition.
For instance, an element with a dangerous short to ground might still light up for a second or two right before it trips the breaker.
You should also look for an uneven glow or bright “hot spots” along the coil. These are classic warning signs that the element is degrading internally and is on its way out. The glow is a decent clue, but only a proper multimeter test gives you the full picture.
